YIXIST YSM-8105-09 256 Pixels InGaAs NIR Spectrometer HAM G9203 Pixels 50*500um 900-1700nm

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YSM-8105-09

Size : 94mm*60mm*36.5mm

Wavelength Range : 900-1700nm

Model : YSM-8105-09

Dimension : 94mm*60mm*36.5mm

Optical resolution : ~5nm (pre-configured 25um slit)

Fiber connector : SMA905

Detector : InGaAs

Pixel : InGaAs 256 pixel uncooled detector

Operating Temperature : 5℃-35℃ (recommended temperature 25℃)

Price : $10,324.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

YIXIST YSM-8105-09 256 Pixels InGaAs NIR Spectrometer HAM G9203 Pixels 50*500um 900-1700nm
PRODUCT OVERVIEW
YSM-8105-09 series NIR spectrometer is an upgraded version of YSM-8105-05 series. It adopts Hamamatsu uncooling 256 pixels InGaAs detector, which not only doubles the number of pixels, but also increases the pixel size, and the resolution and sensitivity have been greatly improved. With the replaceable slit design, the spectrometer can be configured as different resolutions and sensitivities for different applications. With compact size, SDK, deep customization, it is suitable for system integration and scientific research, such as food sorting, biopharmaceuticals and life sciences.

Feature

Hamamatsu 128 pixels uncooling InGaAs detector Compact size and easy for system integration Replaceable slit design for different resolution and sensitivity Real-time display peak wavelength and FWHM RS232, Trigger modes, SDK and Deep customization are available

Application

Grain and seed moisture analysis Quality monitoring of Fruits and Meat Process monitoring of Drug and Plastics manufacturing NIR Laser's CWL and FWHM

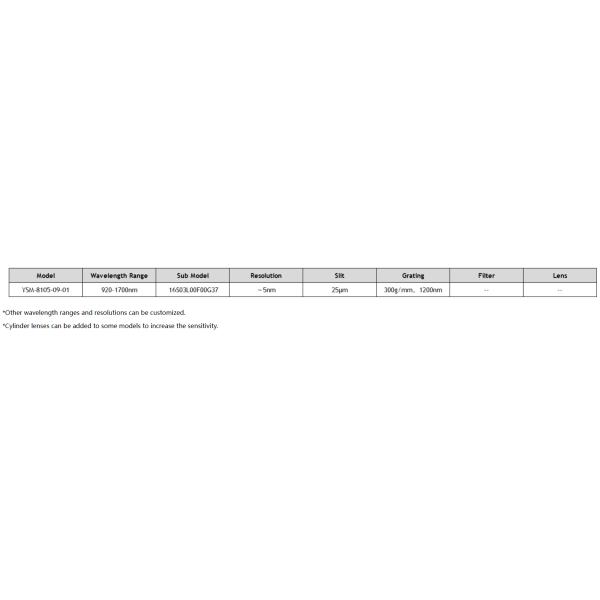

MODEL LIST
YIXIST YSM-8105-09 256 Pixels InGaAs NIR Spectrometer HAM G9203 Pixels 50*500um 900-1700nm
PRODUCT SPECIFICATIONS
Model
YSM-8105-09
Detector
InGaAs 256 pixel uncooled detector
Pixel size 50µm×500µm
Dimension
94mm×60mm×36.5mm
Wavelength Range
920nm-1700nm (pre-configured)
Optical Resolution
~5nm (pre-configured 25µm slit)
A/D
16bit
Integration Time
0.1ms-65s
Trigger Mode
4 types (normal trigger, software trigger,
hardware trigger, synchronous trigger)
Power Consumption
5VDC，300mA
Fiber Connector
SMA905, replaceable slit design
Operating Temperature
5℃-35℃ (recommended 25℃)
Communication Interface
USB2.0, RS232
Operating System
Win XP, Win 7, Win 8, Win10
Power Supply
Micro USB
TYPICAL TESTING
YIXIST YSM-8105-09 256 Pixels InGaAs NIR Spectrometer HAM G9203 Pixels 50*500um 900-1700nm
YIXIST YSM-8105-09 256 Pixels InGaAs NIR Spectrometer HAM G9203 Pixels 50*500um 900-1700nm
RELATED ACCESSORIES
YIXIST YSM-8105-09 256 Pixels InGaAs NIR Spectrometer HAM G9203 Pixels 50*500um 900-1700nm
Fiber
YIXIST YSM-8105-09 256 Pixels InGaAs NIR Spectrometer HAM G9203 Pixels 50*500um 900-1700nm
Light Source
YIXIST YSM-8105-09 256 Pixels InGaAs NIR Spectrometer HAM G9203 Pixels 50*500um 900-1700nm
Sample Holder
